BMW F90 M5 TURNER MOTORSPORT GLOSS CARBON FIBER ENCLOSED INTAKE

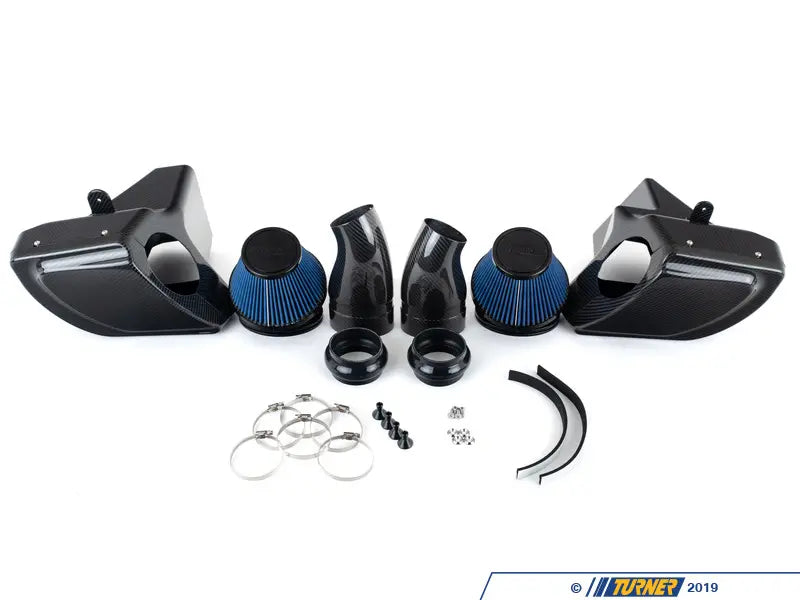

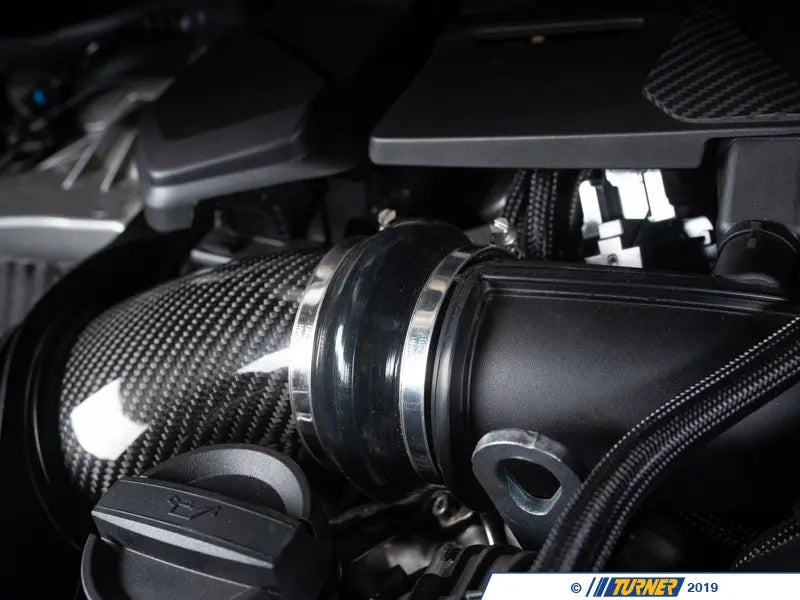

At Turner, all our Carbon Fiber Intake Systems are top-of-the-line custom-engineered products that we develop in house. Our F90 M5 Intakes are no exception. Turner Carbon Fiber Intakes start with a 3D scan of the factory intake and engine bay. Our engineers use these 3D images of the chassis to design the intake in SolidWorks modeling software. Using a Flow Bench, our Intake is then airflow tested against the factory intake, to ensure optimal airflow improvement against stock. The final product is a beautiful and functional Carbon Fiber Intake, CAD designed for perfect integration with the OEM inlet ducting and stock mounting locations and proven to flow better than factory.

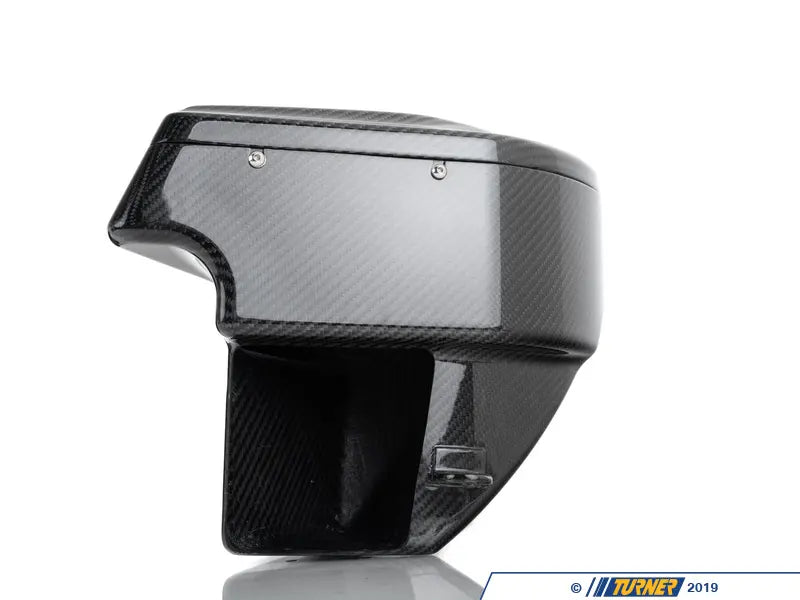

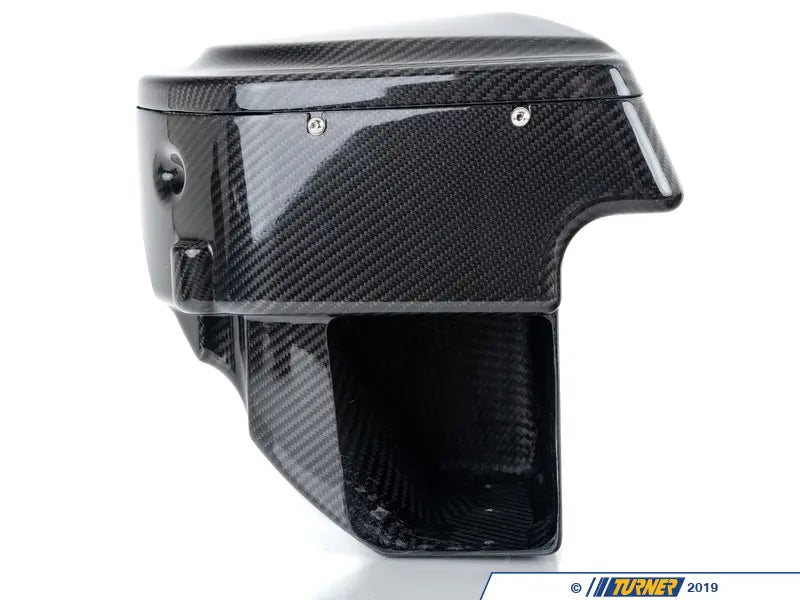

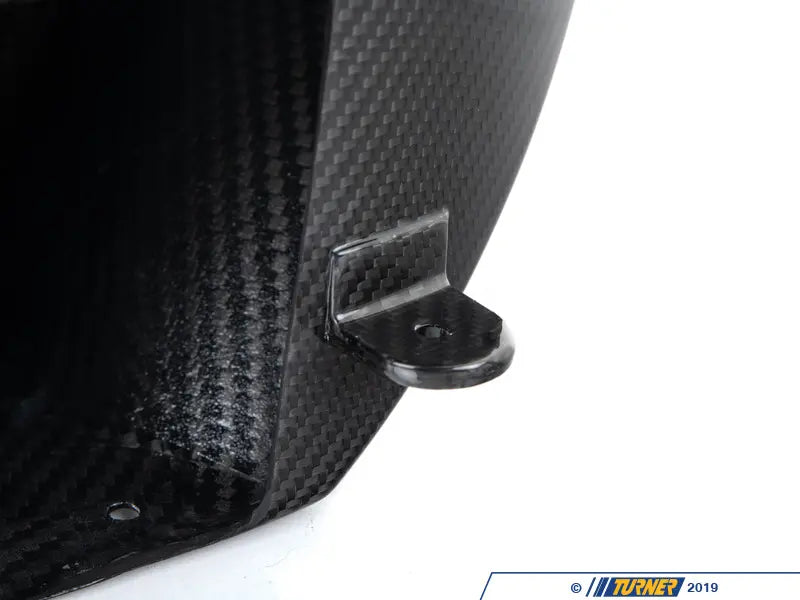

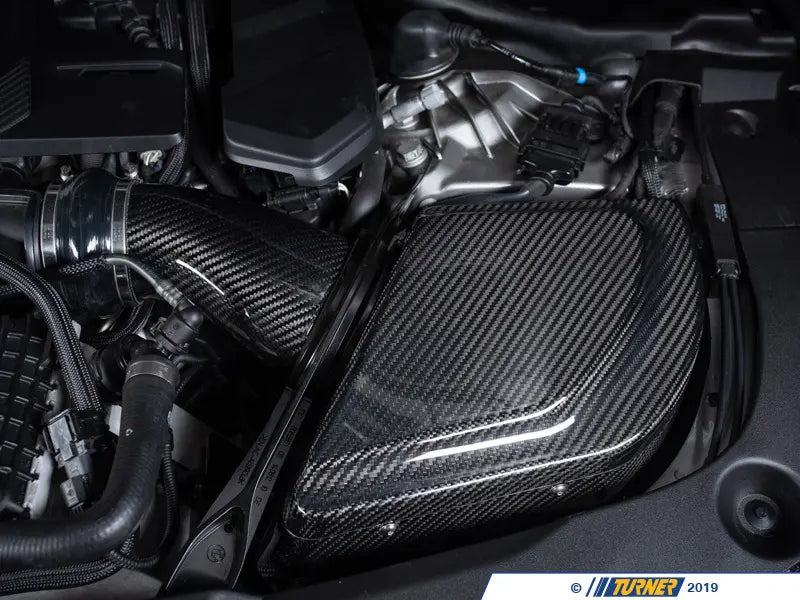

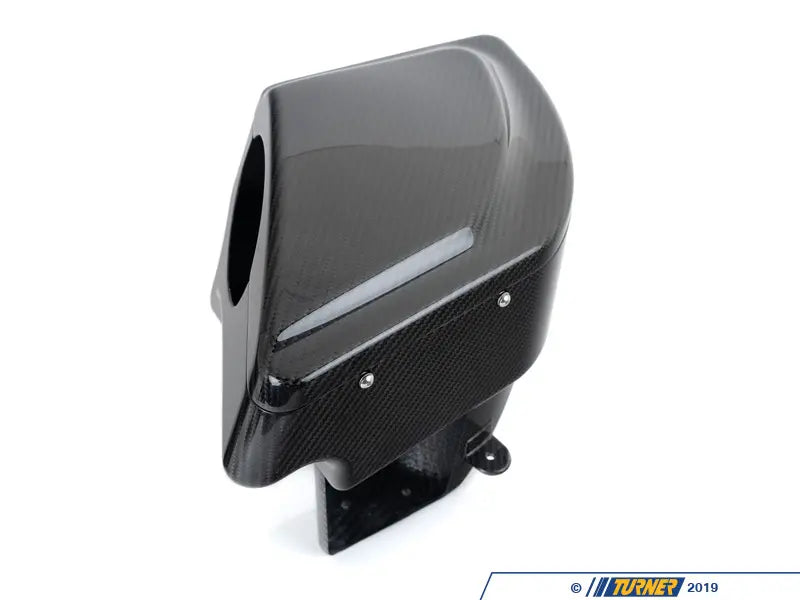

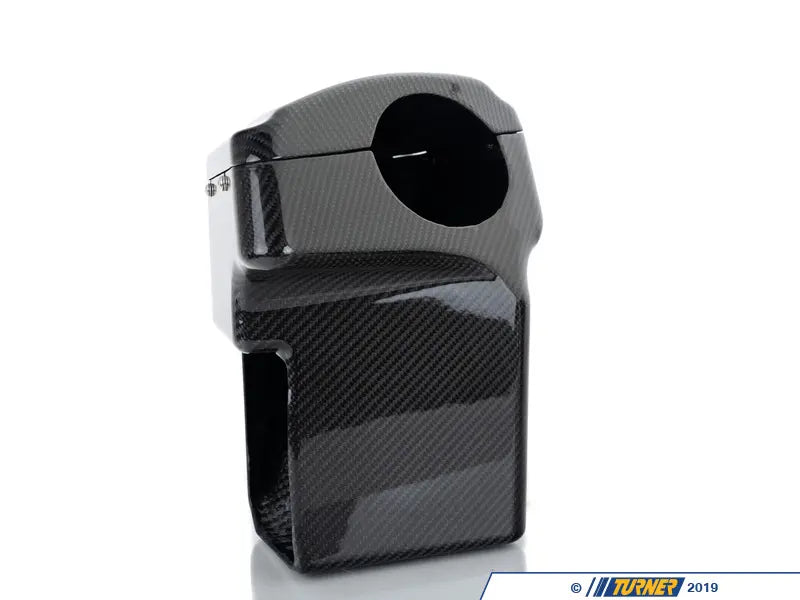

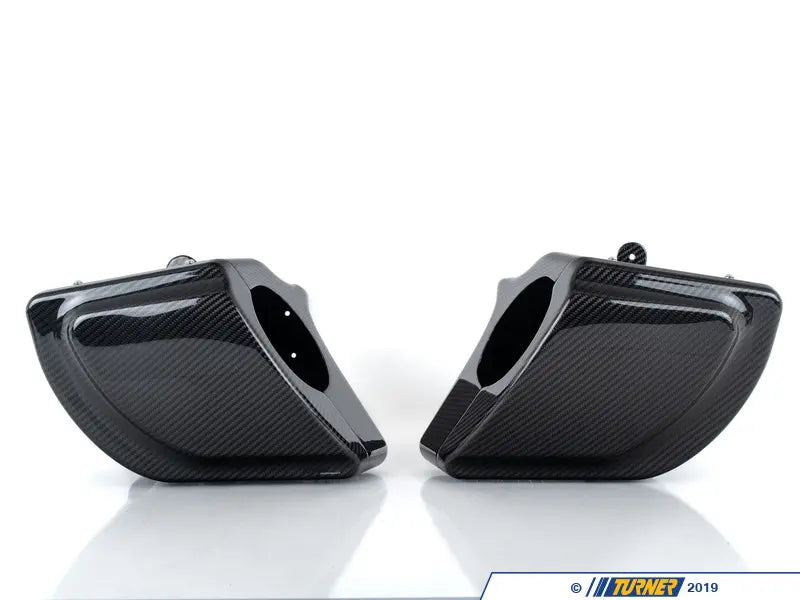

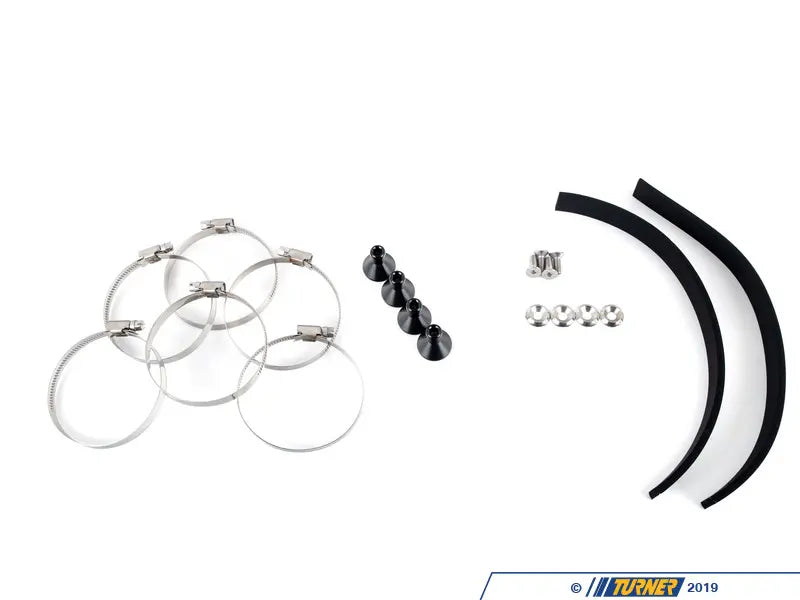

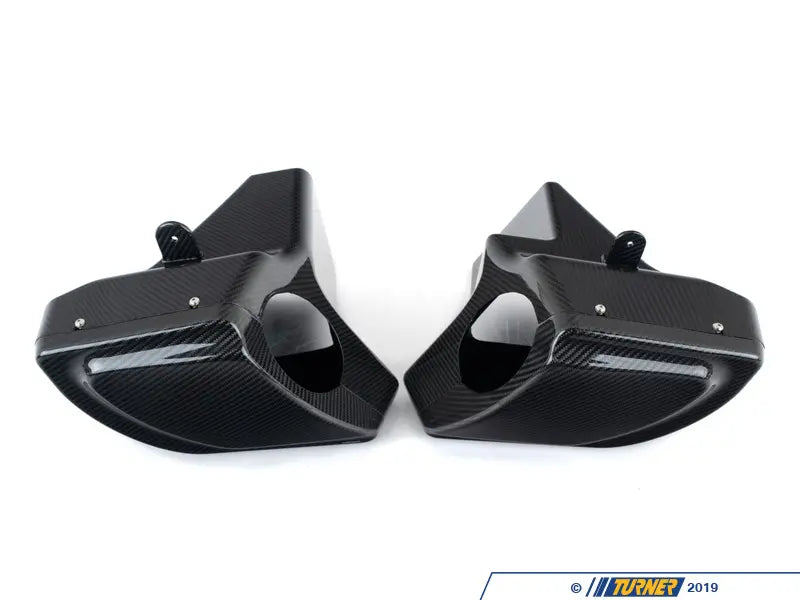

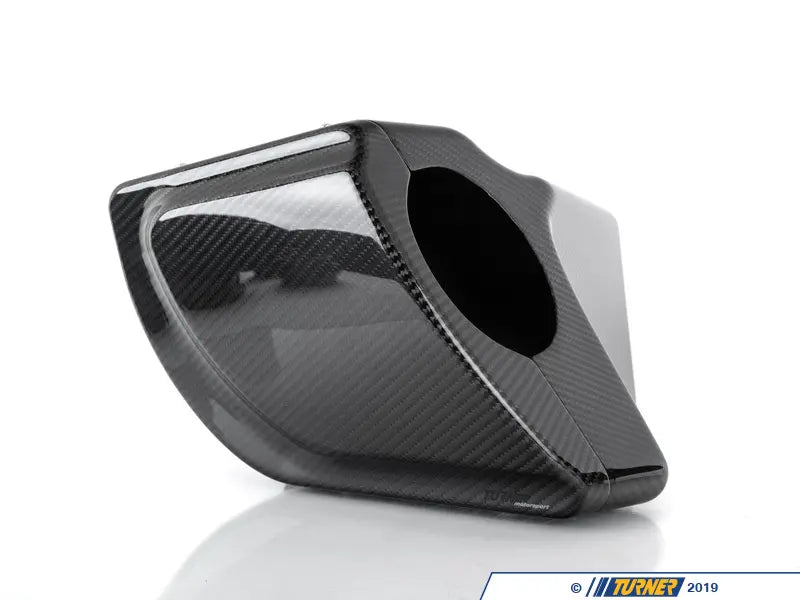

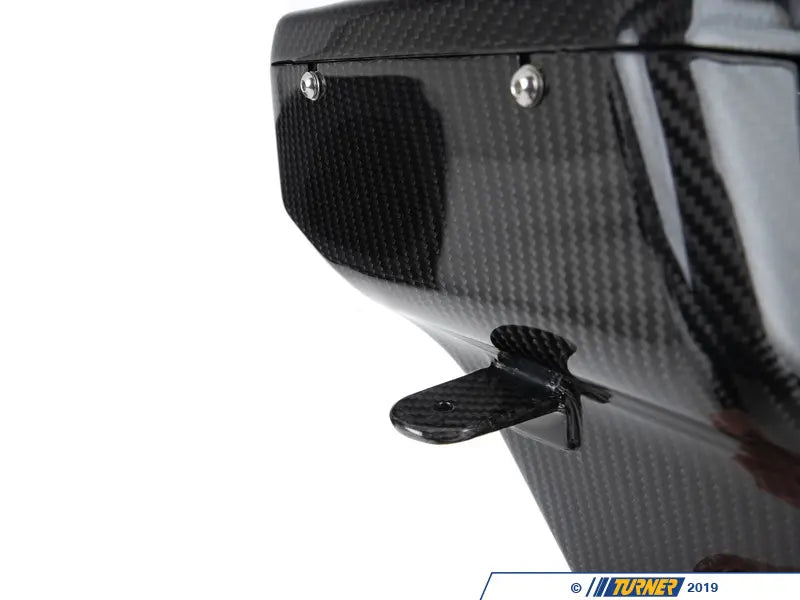

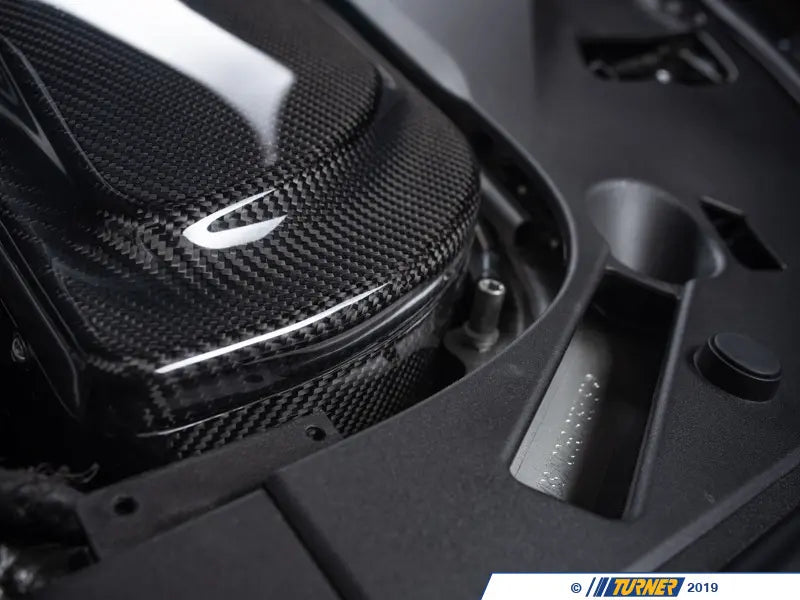

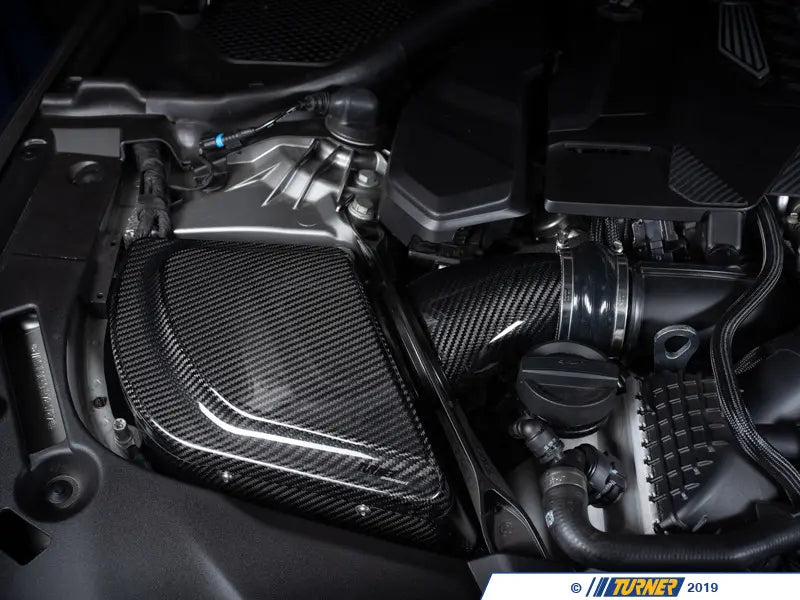

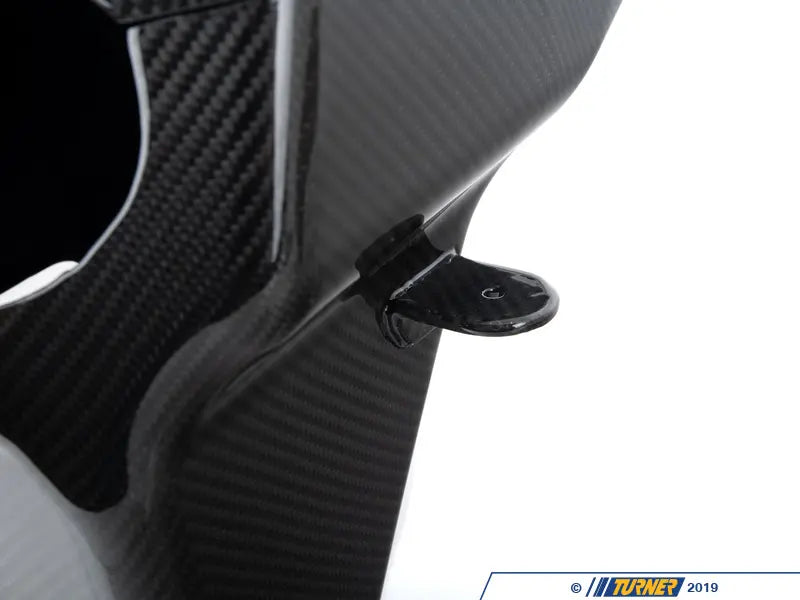

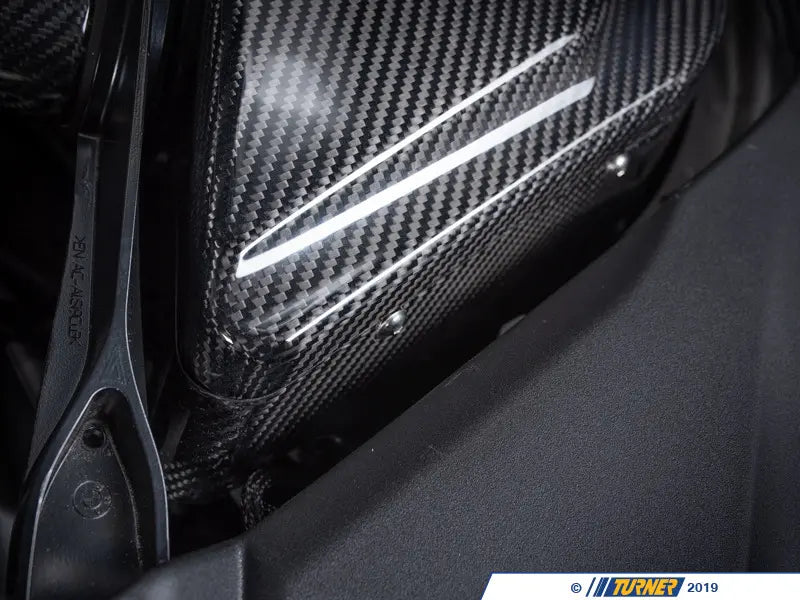

Our F90 carbon fiber airboxes sport entirely carbon fiber construction, with removable carbon fiber lids for easy air filter access. Our enclosed carbon fiber intake systems are also proven to lower intake temps vs. open filter intakes. Plus, they further enhance the appearance of the engine bay, by adding more beautiful carbon fiber. The carbon airboxes and lids are manufactured using 2X2 twill weave carbon fiber and protected with a gloss finish clear coat for UV resistance. The Best part? The air boxes mount in the stock locations with all supplied hardware included.

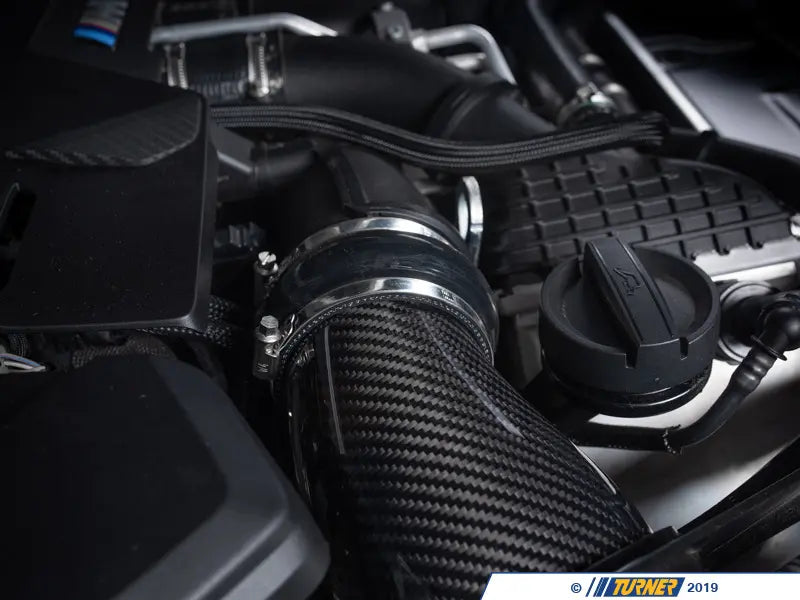

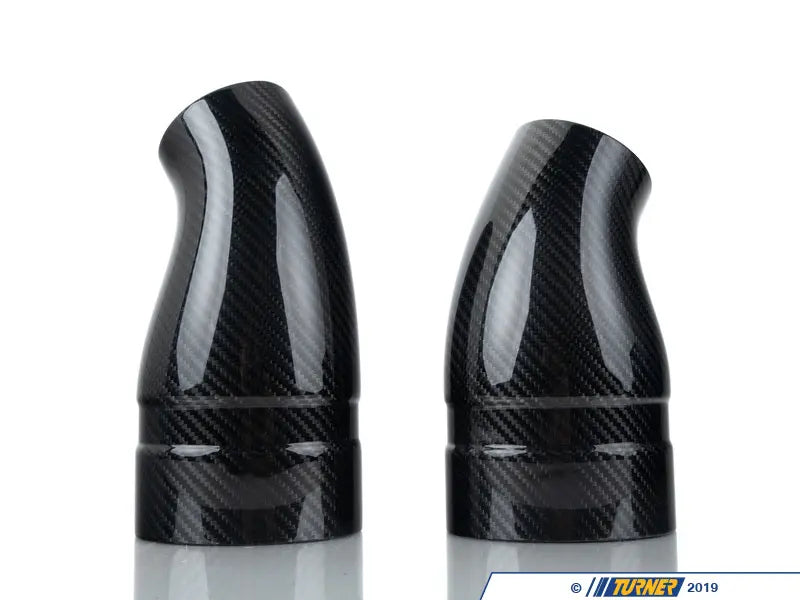

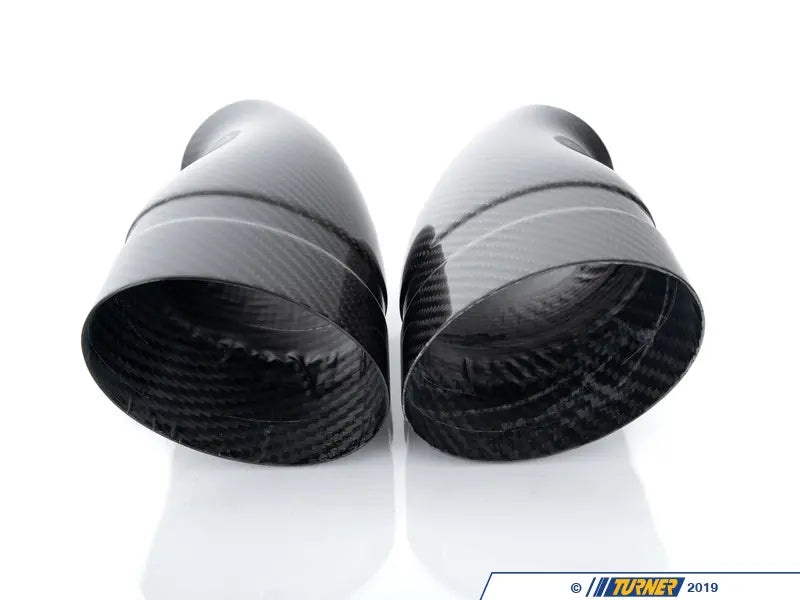

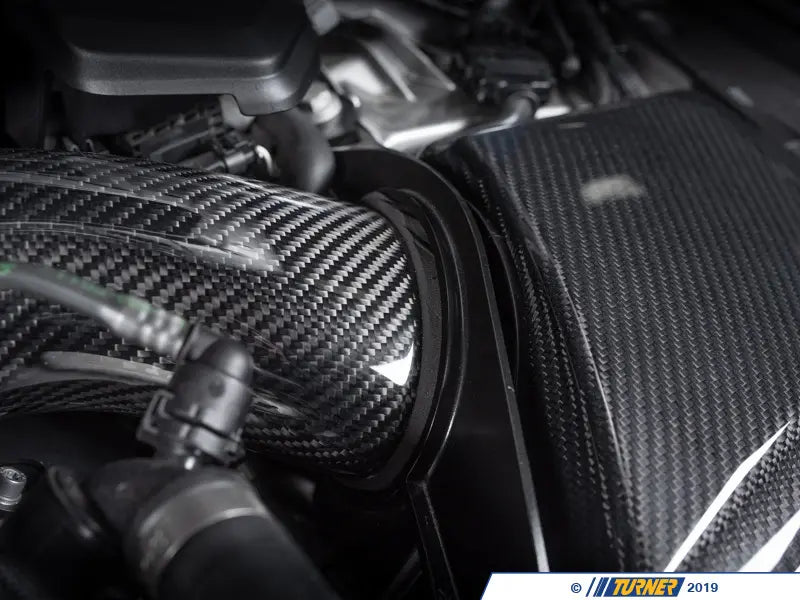

The oval intake tube design matches the OE look, allowing the intake to be used with the factory structural brackets that the intake goes through. However, the cross-sectional area of the Turner Carbon Fiber intake tubes is greater than the stock intake tubes, with a smooth interior for even better flow. The Carbon intake tubes are manufactured using 2X2 twill weave carbon fiber, and the intake tubes are protected by a gloss finish clear coat for UV protection.

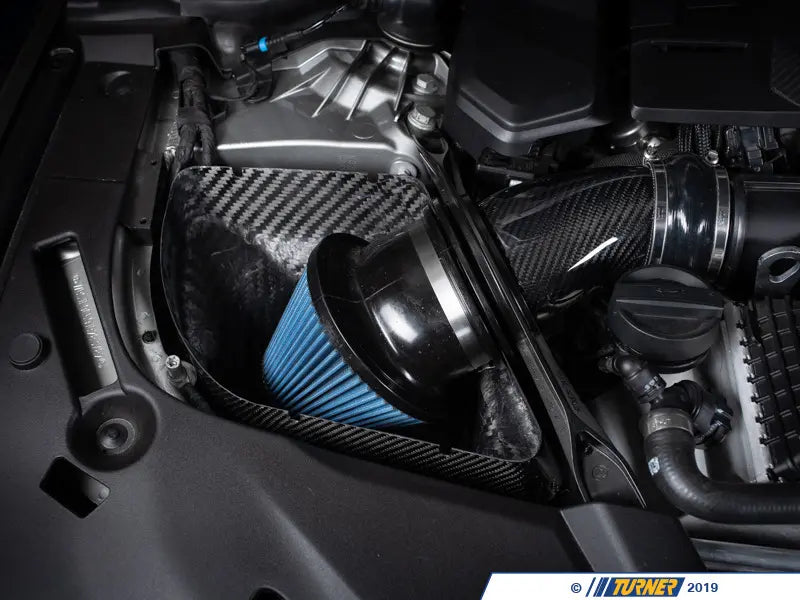

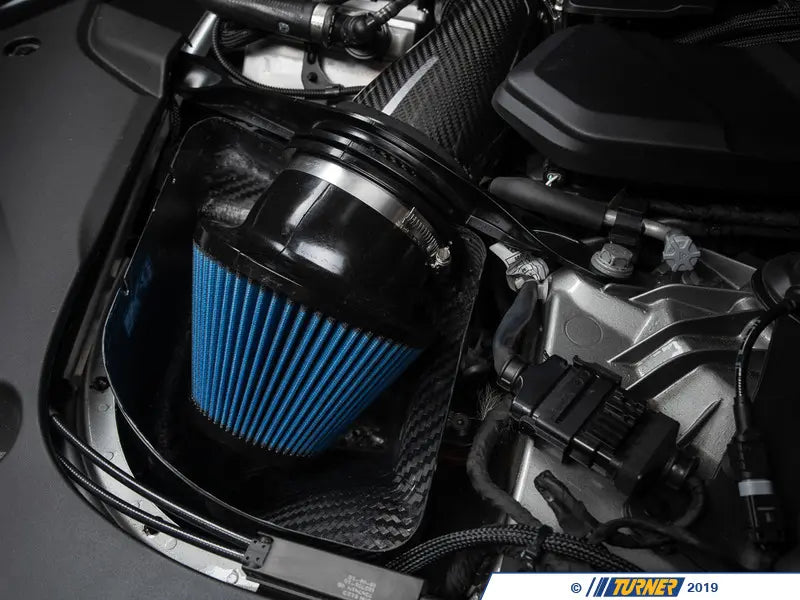

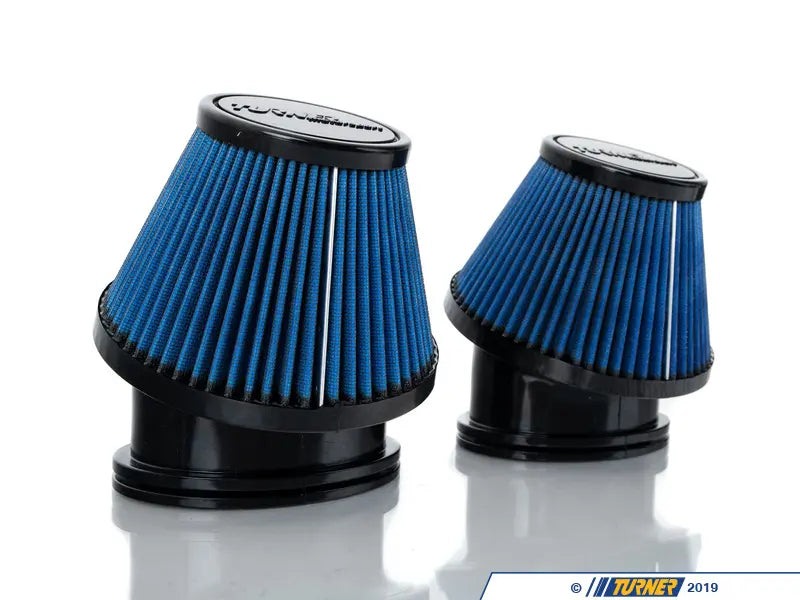

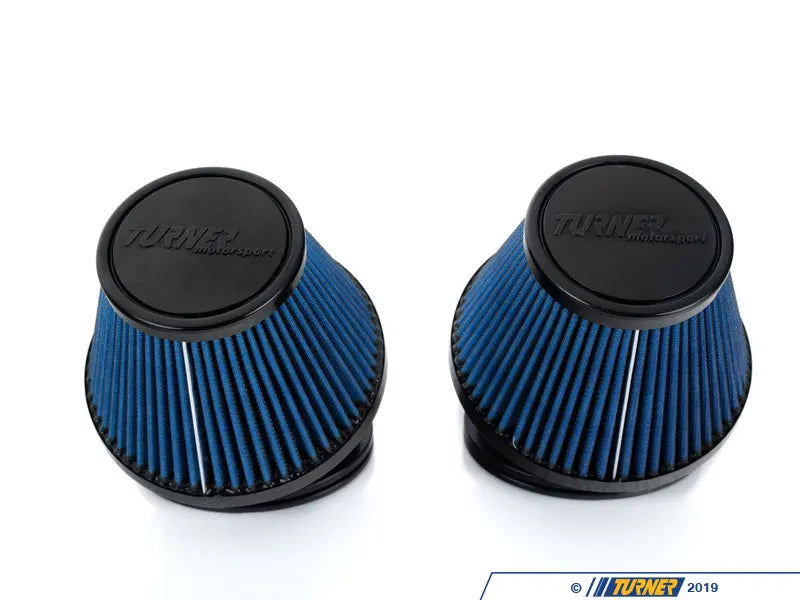

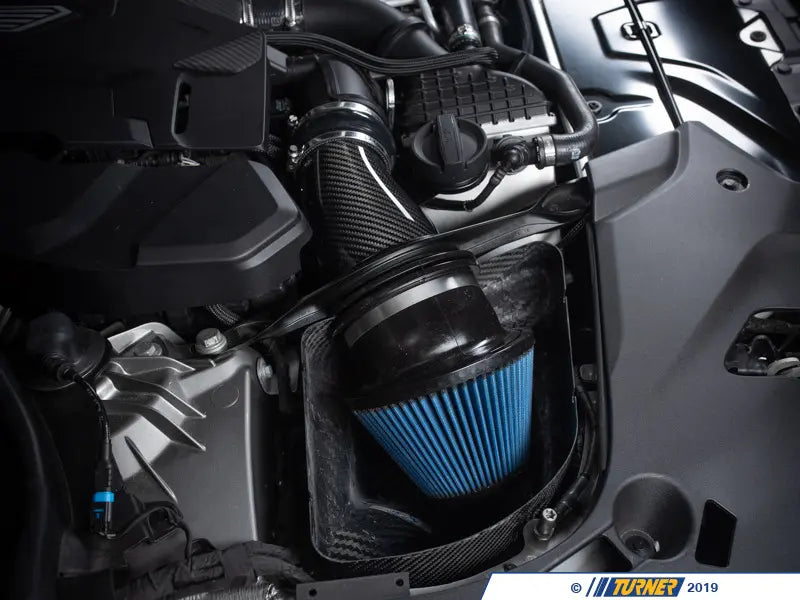

With the oval design of the intake tubes, custom air filters had to be designed for this intake system. The air filter is specially designed to seal against the carbon fiber air box, eliminating any opening for hot air to enter the air box! We created conical hi-flow reusable air filters; featuring 8 ply oiled cotton gauze construction to maximize filtration efficiency. These filters feature a Bellmouth (velocity stack) filter flange inlet to reduce turbulence in order to maximize flow.

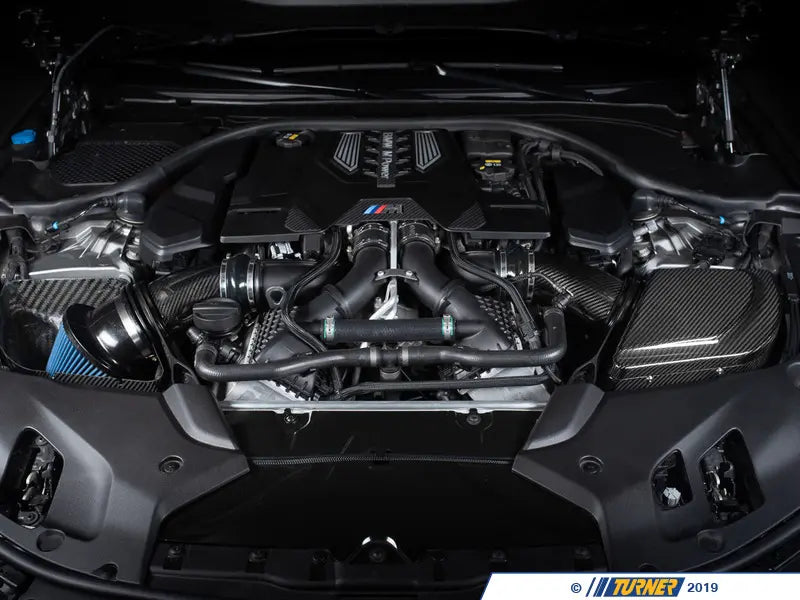

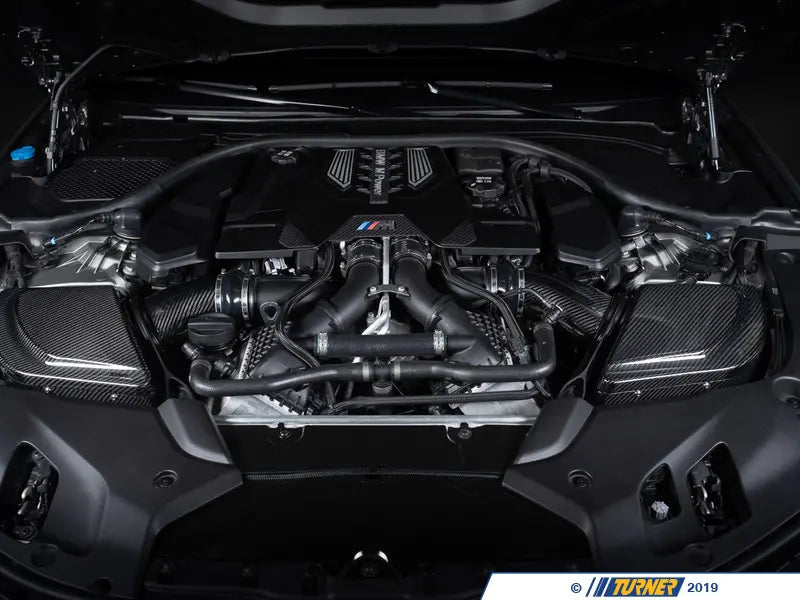

Overall, the less restrictive intake design allows for more flow to the engine. The stock intakes flow 376.3 CFM @ -10 inH20. Turner intakes flow 414.1 CFM @ -10 inH20. Our Turner F90 Intakes show an improvement of 10% more airflow to the engine! A serious improvement! These numbers are also for one airbox. The F90 has a passenger side and driver side airbox. This equates to even more air being moved through these intakes, directly to the engine.

Our F90 M5 Carbon Fiber Intakes not only look great but they also really perform. Transform your vehicle's performance and appearance today!

Features:
10% more airflow than factory intakes
Entirely carbon fiber airboxes and tubes, with gloss clear coat for UV protection
CAD-Designed for perfect Integration
Custom high flow air filters specially designed to seal against the carbon fiber airbox, eliminating any opening for hot air to enter the airbox.
